Product Solutions

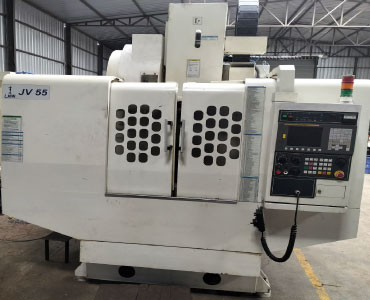

VMC-LMW

VMC-LMW

Technical Specification
Bed Size: 900 X 430 mm Make : 2017 Manufacturer :LMW

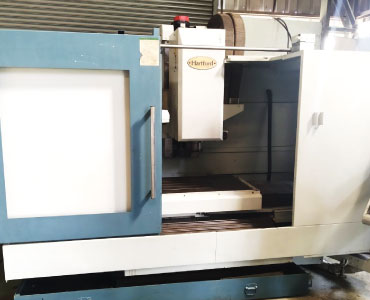

VMC-HARTFORD

VMC-HARTFORD

Technical Specification
Bed Size: 1100 X 600 mm Make : 2013 Manufacturer :Hartford

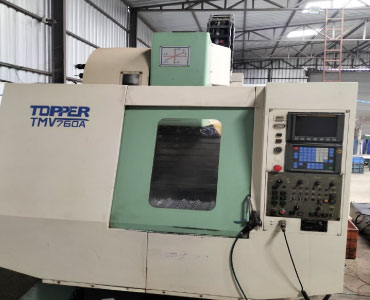

VMC-TOPPER

VMC-TOPPER

Technical Specification
Bed Size: 600 X 400 mm Make : 2013 Manufacturer :TOPPER

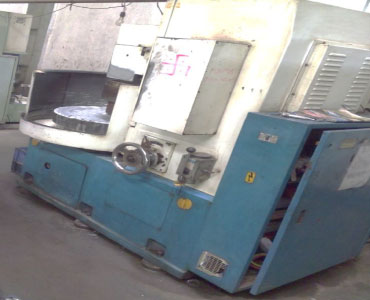

ROTARY GRINDING

ROTARY GRINDING

Technical Specification
Table Size: Magnetic Table Diameter 700mm Make : 2017 Manufacturer :ALEX R-30

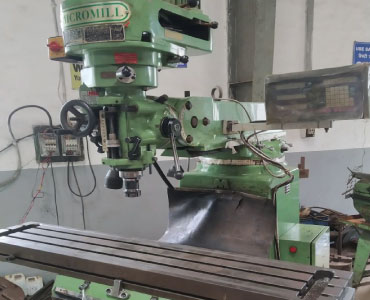

MILLING MACHINE

MILLING MACHINE

Technical Specification
Make : 2020 Manufacturer :MICROMILL Size :Table 1270 x 254 MM

VMC Machined Parts

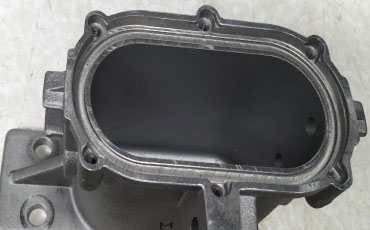

MACHINED M.S. FLANGES FOR ENGINE OIL COOLER

MACHINED M.S. FLANGES FOR ENGINE OIL COOLER

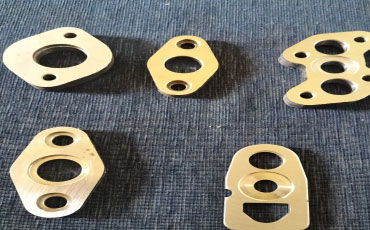

ELECTRICAL BUCHHOLZ REALY ALUMINIUM CASTING BODY

ELECTRICAL BUCHHOLZ REALY ALUMINIUM CASTING BODY

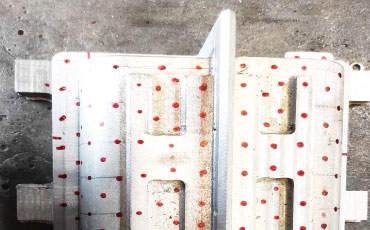

THERMOCOL ALUMINIUM MOULD MACHINED BY MANUFACTURING SOFTWARE-WORKNC

THERMOCOL ALUMINIUM MOULD MACHINED BY MANUFACTURING SOFTWARE-WORKNC

Grinding & Machining Process -Parts

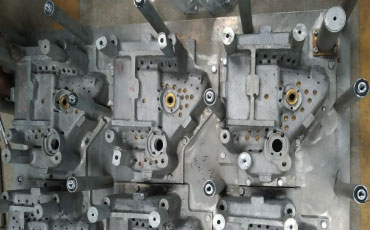

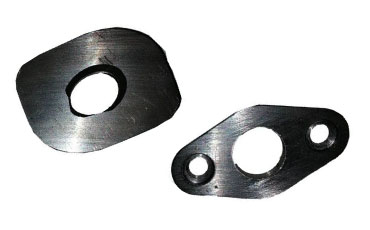

M.S.FLANGES GRINDING & VMC MACHINED PARTS

M.S.FLANGES GRINDING & VMC MACHINED PARTS

ASSEMBLED THERMOCOL(EPS) MOULD

ASSEMBLED THERMOCOL(EPS) MOULD

Stamping Process -Parts

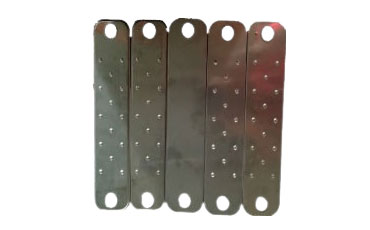

ASHOK LEYLAND IL COOLER PLATES –SS304 MATERIAL

ASHOK LEYLAND IL COOLER PLATES –SS304 MATERIAL

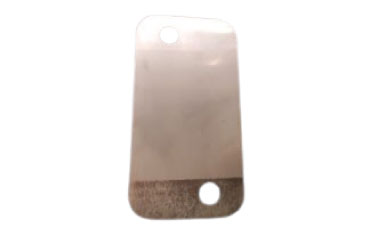

CUMMINS OIL COOLER PLATE-SS304

CUMMINS OIL COOLER PLATE-SS304

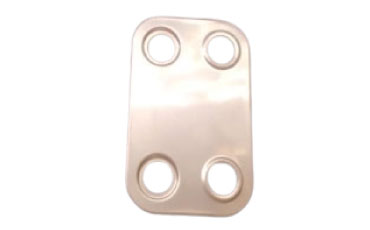

MAHINDRA OIL COOLER PART-SS304

MAHINDRA OIL COOLER PART-SS304

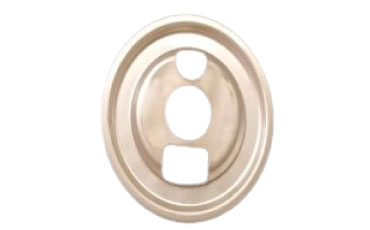

TATA MOTORS OIL COOLER PART-SS304

TATA MOTORS OIL COOLER PART-SS304

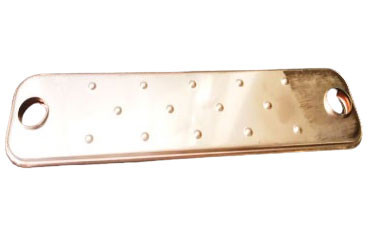

ASHOK LEYLAND PLATE TYPE OIL COOLER ASSEMBLY

ASHOK LEYLAND PLATE TYPE OIL COOLER ASSEMBLY

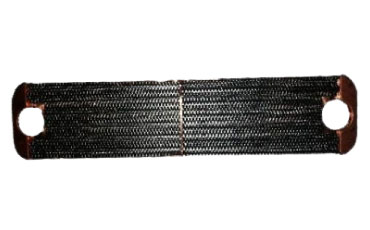

SPOT WELDING JOB FOR OIL COOLER ASSEMBLY-WELDING OF COPPER FOIL WITH TIN MATERIAL

SPOT WELDING JOB FOR OIL COOLER ASSEMBLY-WELDING OF COPPER FOIL WITH TIN MATERIAL

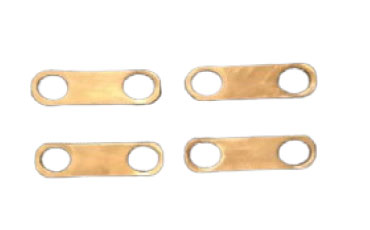

ELECTRICAL INDUSTRY PARTSCOPPER & BRASS SHORTING LINKS OF BUCHHOLZ RELAY

ELECTRICAL INDUSTRY PARTSCOPPER & BRASS SHORTING LINKS OF BUCHHOLZ RELAY

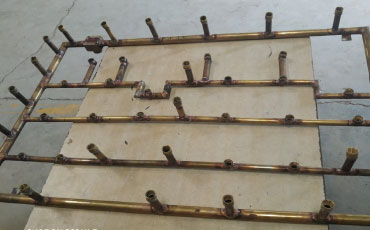

WELDED AND BRAZED PARTS

WELDED AND BRAZED PARTS

BRASS COOLING COIL FOR THERMOCOL MOULD

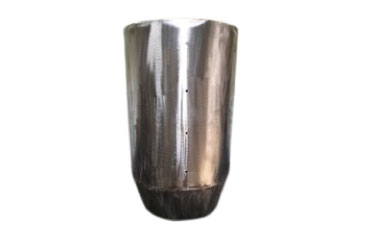

WELDED PARTS

WELDED PARTS

FORMER FOR FURNACE

WELDED PARTS

WELDED PARTS

SS WELDED BRAZING FIXTURE FOR OIL COOLER

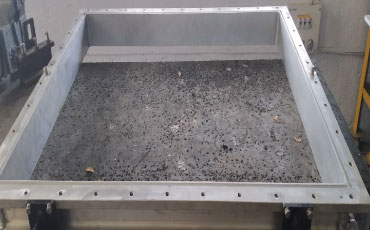

ALUMINIUM WELDING WITH MACHINING PART

ALUMINIUM WELDING WITH MACHINING PART

APPLICATION OF CHAMBER
-CHAMBER IS PART BETWEEN MACHINE & MOULD. USED TO FIT MOULD WITH MACHINE.
-MANUFACTURING PROCESS INVOLVETIG WELDING-VMC MACHINING & TAPPING
